✓ Comprehensive measurement principles for all gases and liquids
✓ Achieves highly accurate volumetric flow, mass flow, and density measurements
✓ Enhanced flexibility and compatibility with most fluids due to the use of AISI 316L stainless steel tubes
✓ Integrated transmitter with standard Modbus (RS485), 4–20 mA analog current outputs, digital input and outputs
✓ Minimal maintenance and high reliability thanks to the absence of moving parts that may wear or require replacement
✓ Suitable for food and sanitary industries
✓ Supports in-line CIP and SIP processes
✓ Wide measurement range from 0 to 350,000 kg/h
✓ Operating temperature range from -40°C to +150°C
✓ Resistant to vibration and harsh environmental conditions
✓ Excellent zero-flow stability
✓ Available in various sizes from DN8 to DN100
✓ Process connections include ASME_B16.5 CL150(ISO7005 PN16) Flange/ 3A Clamp
✓ Supplied with data sheet & catalogue
✓ Comes with a one-year warranty and ten years of after-sales service

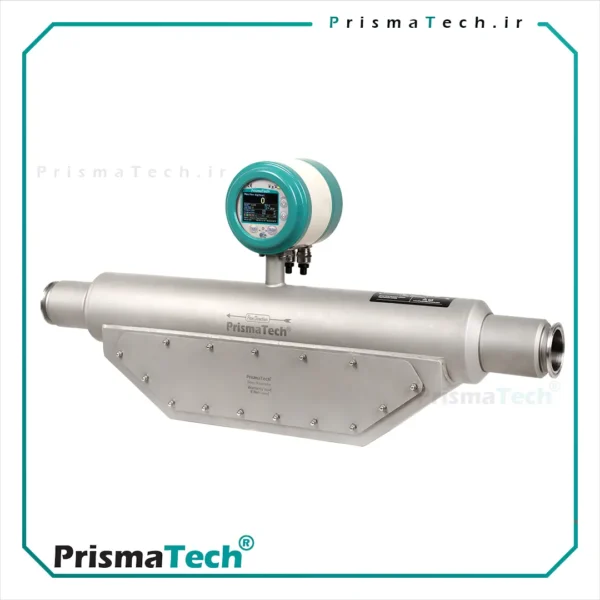

The Coriolis Mass Flow Meter “Type S” (PTCMF) is used across a wide range of industrial applications, including the food, pharmaceutical, oil, gas, petrochemical industries, and even natural sciences.
Coriolis flowmeters are capable of measuring a variety of fluids—such as detergents, vegetable and animal oils, crude oil, plant syrups, alcohols, and even gases—in partial, slurry, and high-viscosity flow conditions.
Simultaneous measurement of mass flow, density, and temperature by Coriolis mass flowmeters opens up new opportunities for improving industrial process control, enhancing product quality assurance, and increasing operational safety.
PrismaTech mass flowmeters are produced in various sizes, ranging from DN 8 to DN 50. The measuring tube is made of stainless steel AISI 316L. These flow meters are equipped with an ARM Cortex M7 processor and a 320×240 TFT LCD display.
In the mechanical structure of a Coriolis mass flowmeter with dual U-shaped tubes, there is an electromagnetic actuator located at the center of the tubes and two velocity sensors positioned on either side. When the actuator is properly controlled, the tubes begin to vibrate at their structural resonance frequency.
By measuring the vibration frequency and applying temperature calibration, the density of the fluid passing through the U-shaped tubes can be determined with high precision. Meanwhile, as the fluid flows through the tubes, a phase shift occurs between the two sensors, and the magnitude of this shift is proportional to the mass flow rate. Therefore, by accurately measuring the phase difference between the magnetic sensors, the mass flow can be precisely determined. Once both mass flow and density are known, the volumetric flow rate can also be calculated.
| Product family name | PrismaTech coriolis mass flowmeter series |
|---|---|
| Product type | PTMAS |
| Measurement principle | Coriolis |
| Measurment parameters | Mass flow, Volumetric Flow, Density, Brix and Temperature |
| Contact to measured medium | Yes |
| Measured media | Liquids and Gases |
| Ambient temperature | -20-+50°C |
| Power supply (VAC) | 110-240 VAC |
| Power supply (VDC) | 18-30 VDC |
| Process pressure | 16 bar |
| Process temperature | -50-+150°C |
| Tube material | AISI316L, Hastelloy, etc. |
| Senosor body material | AISI304, AISI316L |
| Transmitter body material | Painted Aluminium |
| Connections | ASME (B 16.5) Class 150: DN25-DN300 Flange |
| Analogue outputs | Two units 0/4-20 mA (Flow rate,Temperature, Brix, PID controller, etc.) |
| Digital inputs | Two units (Total reset, Hold, Filling reset, etc.) |
| Digital outputs | Two units (Puls, Switch, Batch filling, etc.) |
| Communications | "Modbus RTU (RS485) |
| Cable connection | Gland PG 11 |
| Accuracy (liquids) | ±0.15% Full scale |
| Accuracy (gases) | ±0.15% Full scale |
| Accuracy (density) | ±0.0005gr/cm3 |
| Sensor protection | IP67 |
| Transmitter protection | IP66 |
| Display | 320×240 TFT color LCD, None |
| سایز | DN15, DN25, DN40, DN50 |
