Stainless Steel Electromagnetic Flowmeter (Flange)

The PTMag stainless steel electromagnetic flowmeter with Class 150 flange, marketed under the brand name “PrismaTech,” is an ideal choice for measuring the flow of all electrically conductive liquids, purees, and slurries.

Applications of the PTMag Stainless Steel Class 150 Flanged Electromagnetic Flow Meter

This flowmeter can be used in the food and beverage, pharmaceutical, and chemical industries, as well as in paper, steel, power, and mining industries. In general, it can measure the flow of fluids with a minimum conductivity of 5 µs/cm and up to 40% solid content.

The device consists of a stainless steel 304 sensor unit for measurement and an anodized aluminum transmitter unit designed to calculate and display flow data online with high accuracy.

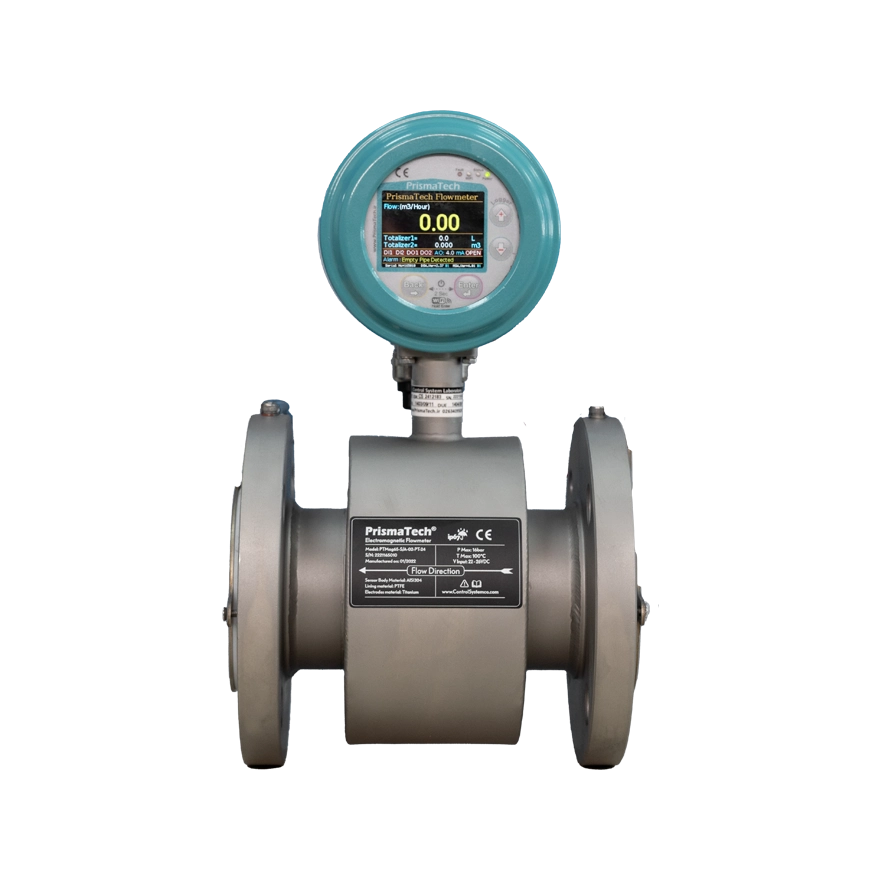

This model features a 128×64 pixel LCD display with touch-sensitive proximity keys mounted on the sensor, allowing real-time display of measurement results.

Additionally, measurement data can be transmitted via the system’s digital (RS485) or analog (0/4–20mA) output ports to local controllers such as PLCs.

Sizes

The PrismaTech electromagnetic flow meter is available in sizes 25, 38, 51, 63, 76, and 102 mm and can be installed using standard connections such as clamp, flange, and union fittings.

What is a Stainless Steel Magnetic Flowmeter?

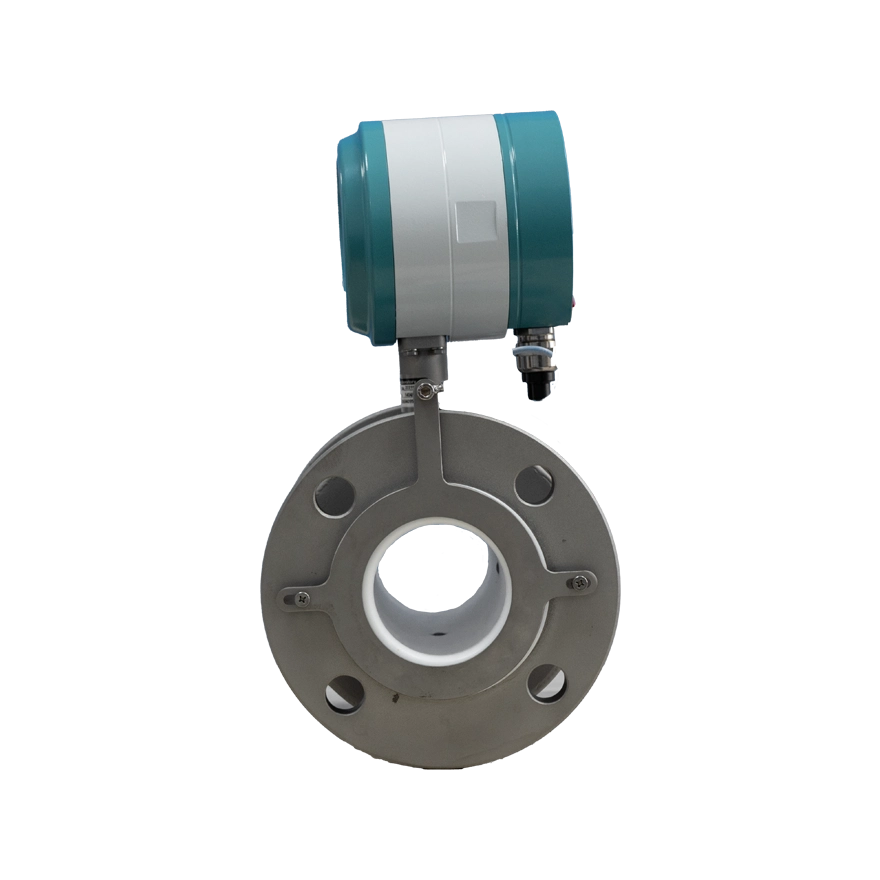

It is a precision instrument used to measure the flow of conductive liquids in industrial pipelines. The device is made of stainless steel, providing high corrosion resistance, and features ANSI-standard Class 150 flanges for easy and secure installation.

Features and Advantages of the Stainless Steel Magnetic Flow Meter with Class 150 Flange

1. Stainless steel body: High resistance to corrosion and rust, suitable for harsh environments and sensitive applications.

2. Class 150 flange: Compliant with industrial standards, ensuring strong and safe connections.

3. High accuracy: No moving parts, reducing measurement errors and improving precision.

4. Versatile applications: Suitable for a variety of liquids, including water, wastewater, chemical solutions, and food products.

Applications of the Stainless Steel Class 150 Flanged Electromagnetic Flow Meter

• Oil and gas industry: Accurate flow measurement in refining and transfer processes.
• Chemical industry: Suitable for corrosive and chemical solutions.
• Water and wastewater treatment: Flow control in purification and distribution systems.
• Food and pharmaceutical industries: Ideal for hygienic and contamination-sensitive environments due to its stainless steel construction.

Technical Specifications of the Stainless Steel Class 150 Flanged Electromagnetic Flow Meter

• Body material: Stainless steel
• Connection type: Class 150 flange, ANSI standard
• Flow measurement range: Depends on the size and model of the flow meter
• Accuracy: Typically within ±0.5% to ±1% of the measured value
• Maximum working pressure: Up to 150 PSI, according to Class 150 standards

Installation and Maintenance Guidelines

• Proper leveling: Correct and level installation is essential for high accuracy.
• Periodic inspection: Regularly check flange connections to prevent leakage and maintain performance.
• Proper storage and handling: Keep the device at suitable temperatures and avoid mechanical impacts to extend its lifespan.

Selection and Purchase

When selecting and purchasing a stainless steel magnetic flow meter with Class 150 flange, it is important to consider specific process requirements, flow range, fluid type, and environmental conditions. Consulting with reliable suppliers and technical experts can help ensure the right choice.

Due to its high durability, accuracy, and reliability in measurement, this type of flow meter is a suitable option for many industrial and process applications.
